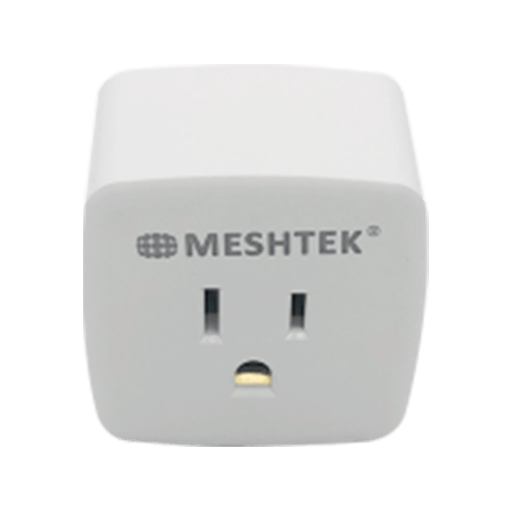

MeshTek® SmartPlug

Model No. MTSP01W

Control devices connected to the MeshTek® SmartPlug using MeshTek® iOS or Android apps over a simple Bluetooth Low Energy (BLE) protocol.
Refer to User Manual for more details.

General Specifications:

Description

Rating Notes

Input Voltage

120VAC

Output Current

15A (Resistive Load)

Wattage (Max)

1800W (Resistive Load)

No. of Outlets

1

Input Plug Format

B – US Style

Output Socket Format

A/B – US Style

Control Method

Bluetooth using any SmartPhone iOS & Android app available

Radio Operating Frequencies

2.360 GHz-2.500 GHz

Radio On-Air Data Rate

1 Mbps

Radio Output Power (Max)

+18.9 dBm onboard external PA

Receiver Sensitivity @ BLE

-96 dBm Ideal transmitter

Open-Air Control Range

200m

Enclosed Control Range

50m

Proximity/Beacon Support

Yes

Over-the-Air Firmware Updates

Yes

Certifications

ETL, cETL, FCC SDoC, ICES In Progress

Operating Temperature

-20°C to +40°C

Dimensions

52mm x 52mm x 33mm

Enclosure Material

PC

Enclosure Colo

The BlueHopper Lighting Automation Platform is Supported By 35+ Patents

White

35+ Patents Supporting Our Automation Platform

8,890,435;

8,896,232;

8,742,694;

8,896,218;

9,295,144;

9,133,528;

8,896,232;

9,967,960;

10,321,541;
