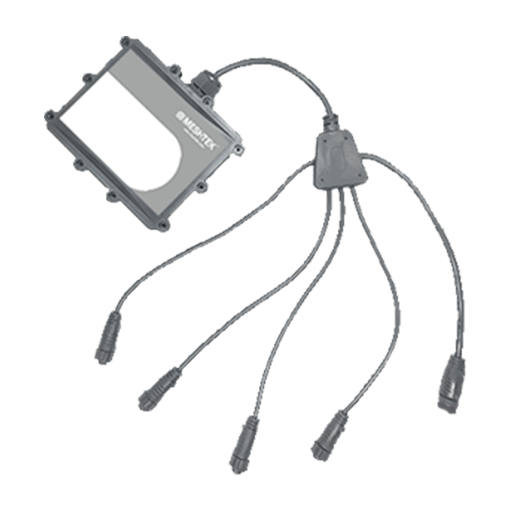

SINGLE AND 4 CHANNEL CONTROLLER

A plug and play Bluetooth single or four channel controller to configure, control, schedule, and manage the 4 wire nuggets permanent roofline lighting, 3 wire C9 and Bullet types of lighting, string/patio lighting, and strip lighting. It allows controlling digitally addressable lighting providing beyond imagination permanent colorful lighting solutions for celebrations around the year. It has four (4) legs to control nugget lighting in up to 4 directions using simple iOS and Android apps. It automatically becomes part of the advanced Bluetooth mesh network with other MeshTek enabled devices in the network.

Features and Advantages:

Plug and play controller easy to Install Setup
Automate with daily, weekly and calendar schedule
Customizable light shows and scenes
Bluetooth mesh control via mobile apps or the gateway
Retains schedule independent of network or power outages
Individual, group or network level control
Numerous built-in Scenes, Effects,
High range of up to 1000 feet line of sight

General Specifications:

Input Voltage

8VDC-36VDC

Driving Current Rating

0-4A per channel

No. of Channel Supported

1-4 Channels

Control Method

Bluetooth mesh via Smartphone or MeshTek Gateway

Open-Air Control Range

Up to 200m

Scheduling

Weekly, annually, calendar wise

Effects and Scenes Programming

20+ and customizable for speed & colors

IP Rating

IP65

Certifications

FCC, IC

Dimensions (mm)

120x102x55 (four channel); 65x50x18 (single channel)
