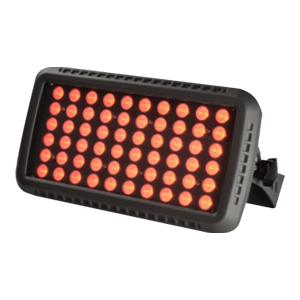

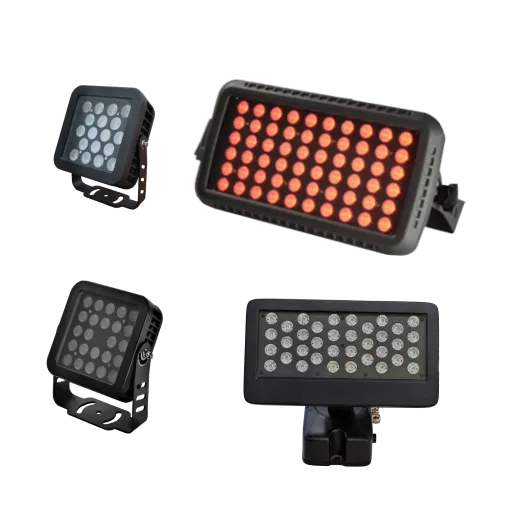

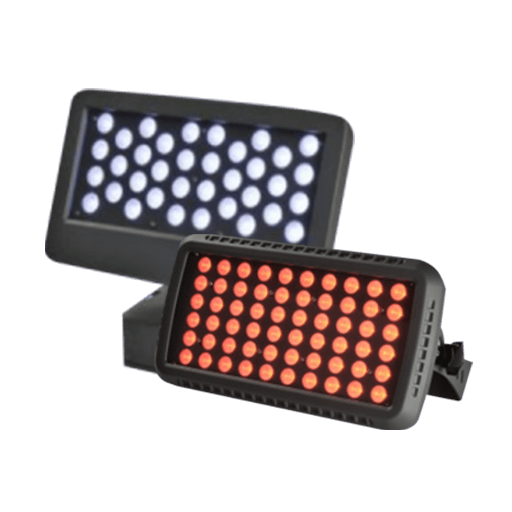

FLOOD LIGHT

RGBW flood light for outdoor applications is a state of the art lighting fixture with the patented HyperLux technology. It enhances the commercial and residential properties night time decoration of various parts and areas of the infrastructure, while keeping the installation professional. Simple to install with plug and play lights and controllers, scalability with daisy chainable aspects, and variations in the fixtures to choose from, flood lights are perfect solutions for giving infrastructures a premium feel. With the HyperLux technology, the 1802W and 80W floods pump color light output equivalent to 360W and 160W standard flood lights respectively, making the solution cost effective, and light weight for transportation and installation.

Lights in Action

Features and Advantages:

Energy efficient and Daisy chain connections maintenance free
Highest and most efficient driver utilization
Excellent thermal management
Daisy chain connections
30,000 hours high class RGBW LEDs
High lumens output for each color with HyperLux
Strong and durable metal finish for long lasting applications

General Specifications:

Power (Max)

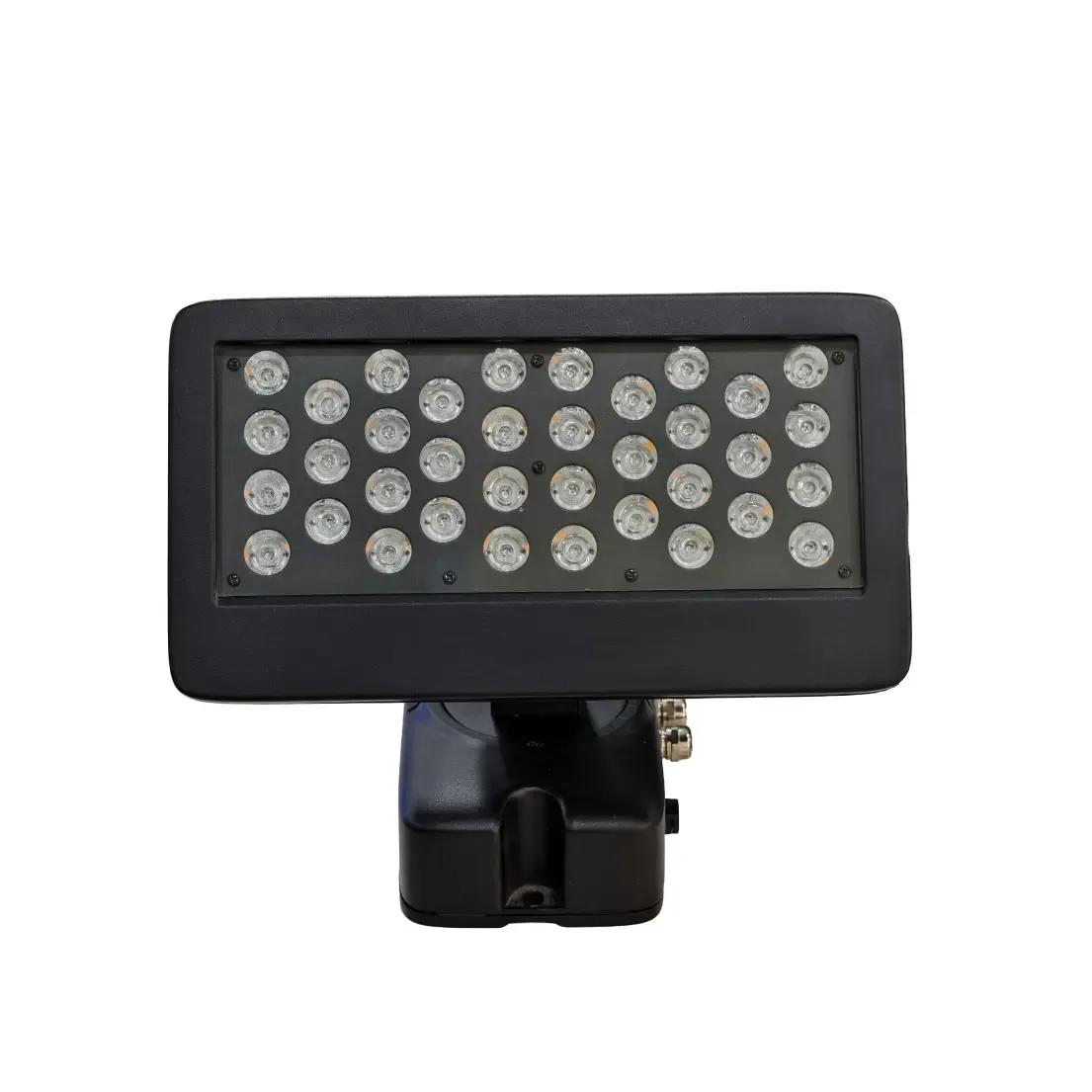

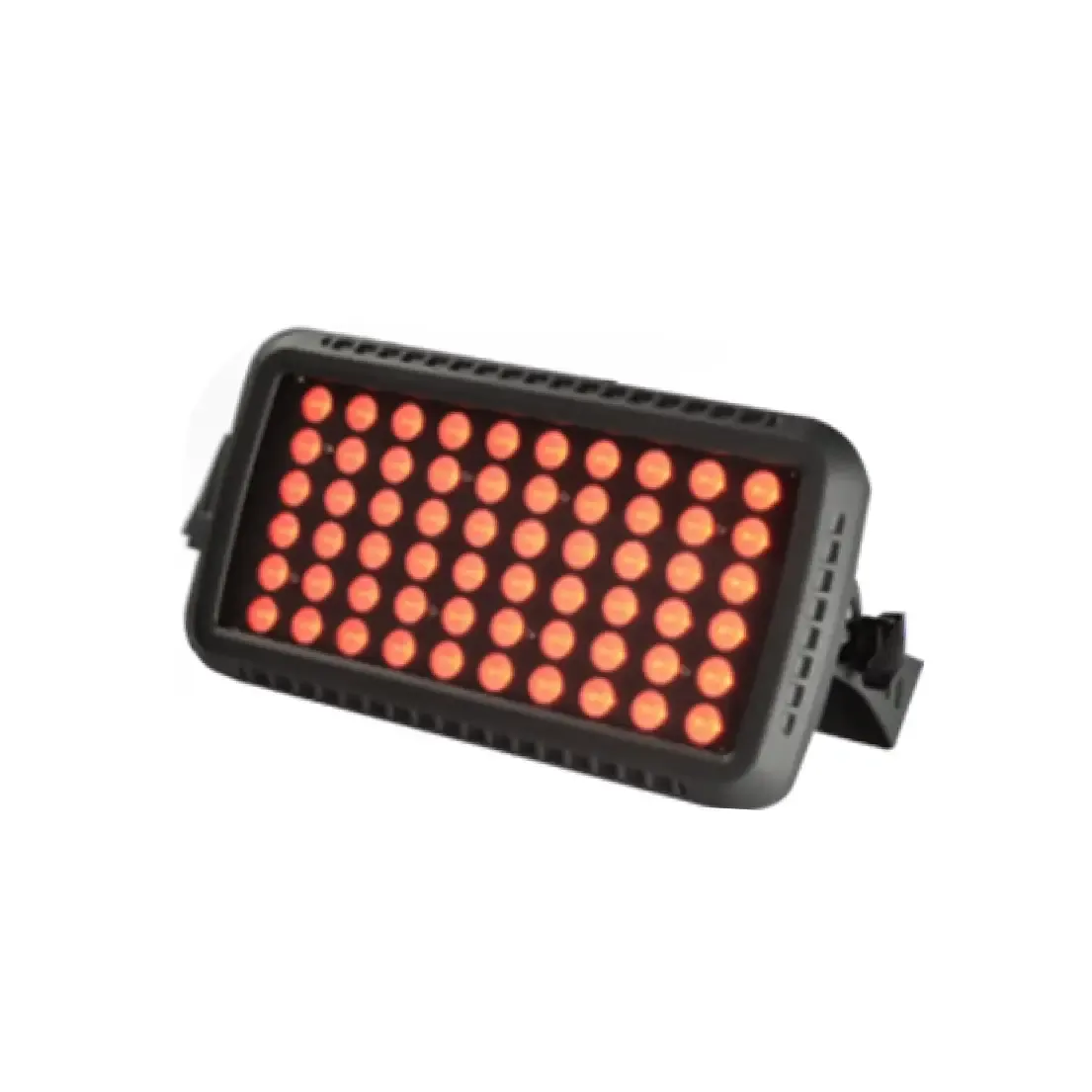

80W and 180W (Color lumens output equivalent to 160W and 360W fixtures respectively)

Supply voltage

24VDC input (use MeshTek provided 24V 200W MeanWell Power Supply only)

Type of Controller

Bluetooth RGBW-PWM Controller (separate unit)

Control Method

Direct control by smartphone with iOS, Android, and Web App via Gateway

Various Beam Angles

10 deg to 120 deg

Material

Die-cast Aluminum

Max Lumens

6000 (80W), 12500 (180W)

Light output

16 Million Colors and Dimmable

Whites color temperature range

2000K to 7500K

LED Chipset

4 in 1 RGBW high power, 16 million colors

Lifetime

35,000 hrs. Tested for salt spray for>1,000 hrs

IP Rating

IP66

Color

Gray / Black

35+ Patents Supporting Our Automation Platform

8,890,435;

8,896,232;

8,742,694;

8,896,218;

9,295,144;

9,133,528;

8,896,232;

9,967,960;

10,321,541;
